SC1212 · small rounded V

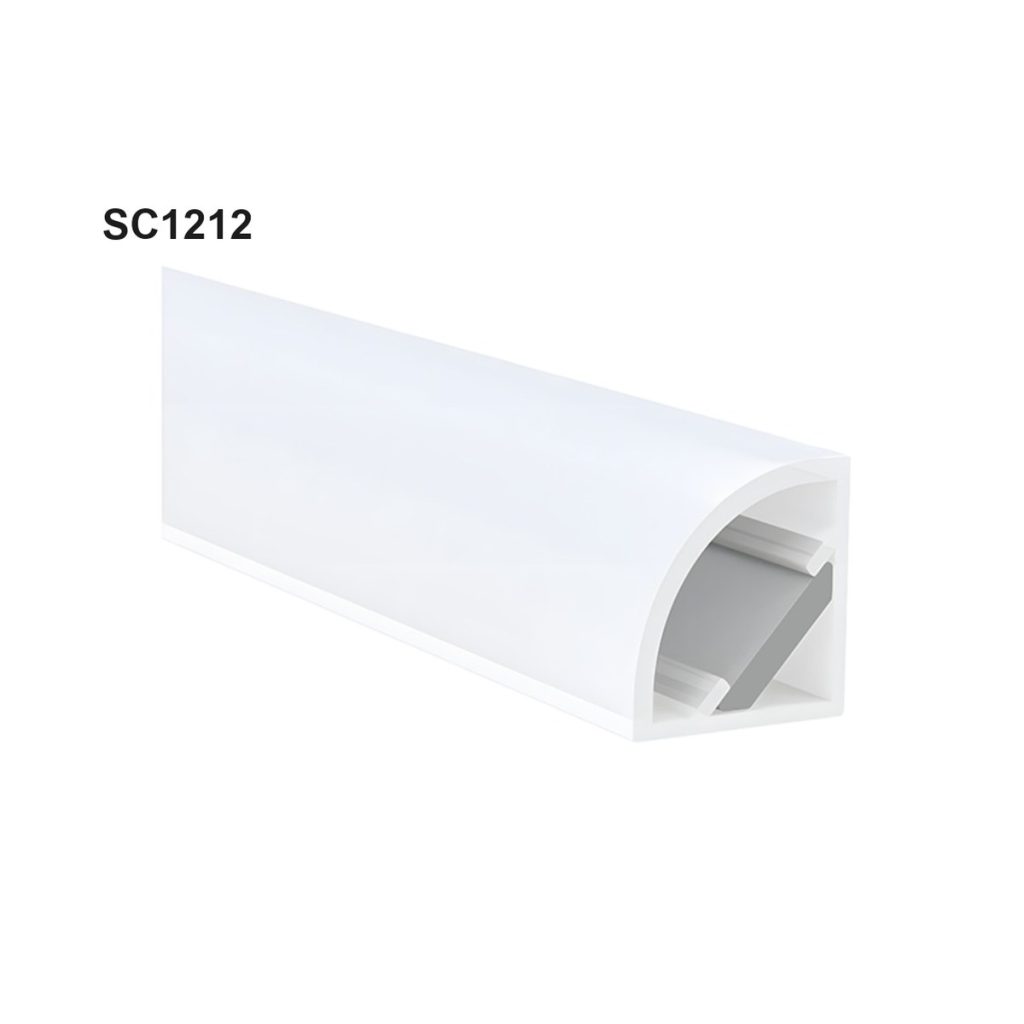

A compact 12 × 12 mm body for narrow joinery corners; published strip space up to 6 mm.
View Product Triangular profile sections
V shape LED channel for a precise junction fit
A V-shaped LED channel can fit a junction between two surfaces when the section matches the opening.
- Compare the full body outlines, including mounting legs and cover space.
- Check strip platform and diffuser retention together.
- Allow room for fixing and cable exits inside the junction.
- VST can provide a matching SC section for a fit trial.
Section-led selection
The cross-section carries the design
A v shape LED channel combines two mounting legs with an angled opening for the diffuser.
The body and cover may have rounded, square or asymmetric outlines. Use a full section drawing to see the outside profile and the luminous opening. The body must fit the host corner, leave space for a suitable LED strip and allow the cover to be removed after installation. The SC1212, SC1919J and SC3030C images show how much the proportions can change within one corner family.
Leg proportions
Equal outside dimensions do not describe the internal platform or cover shape. Compare the section drawing with the exact host joint.
Cover seating
The diffuser needs secure engagement around the visible opening while remaining accessible after neighboring panels are installed.
Fastening room
Leave enough access for the intended clips or screws; a drawn V-shaped void can be too tight for the assembly tool.
Cable allowance
Reserve a controlled end or rear exit so the lead is not trapped between the two mounting faces.
Component matching
A V section chosen around the host structure
VST can compare SC geometry with your panel or fixture drawing and coordinate the cover and strip. As a v shape LED channel supplier, VST can specify the exact section and accessories you will receive.
Real section options
Six published SC models give a defined range of outer sizes and strip platforms. Their drawings make comparison more reliable than front-view photos alone.
Assembly communication
A sample helps test how the cover snaps in and where a screwdriver or clip can reach once the body is inside its host.
Matched accessories
VST can discuss diffuser and end-cap variants alongside the metal part so a furniture or fixture drawing includes the visible finish.
Repeat supply record
Keeping the SC code, finish, cover and cut length together reduces ambiguity when another batch of the same host product is made.
Shape and fit
The V is only the start of the specification
A v shape led profile is a triangular LED strip housing intended to occupy an inside junction or angled recess.

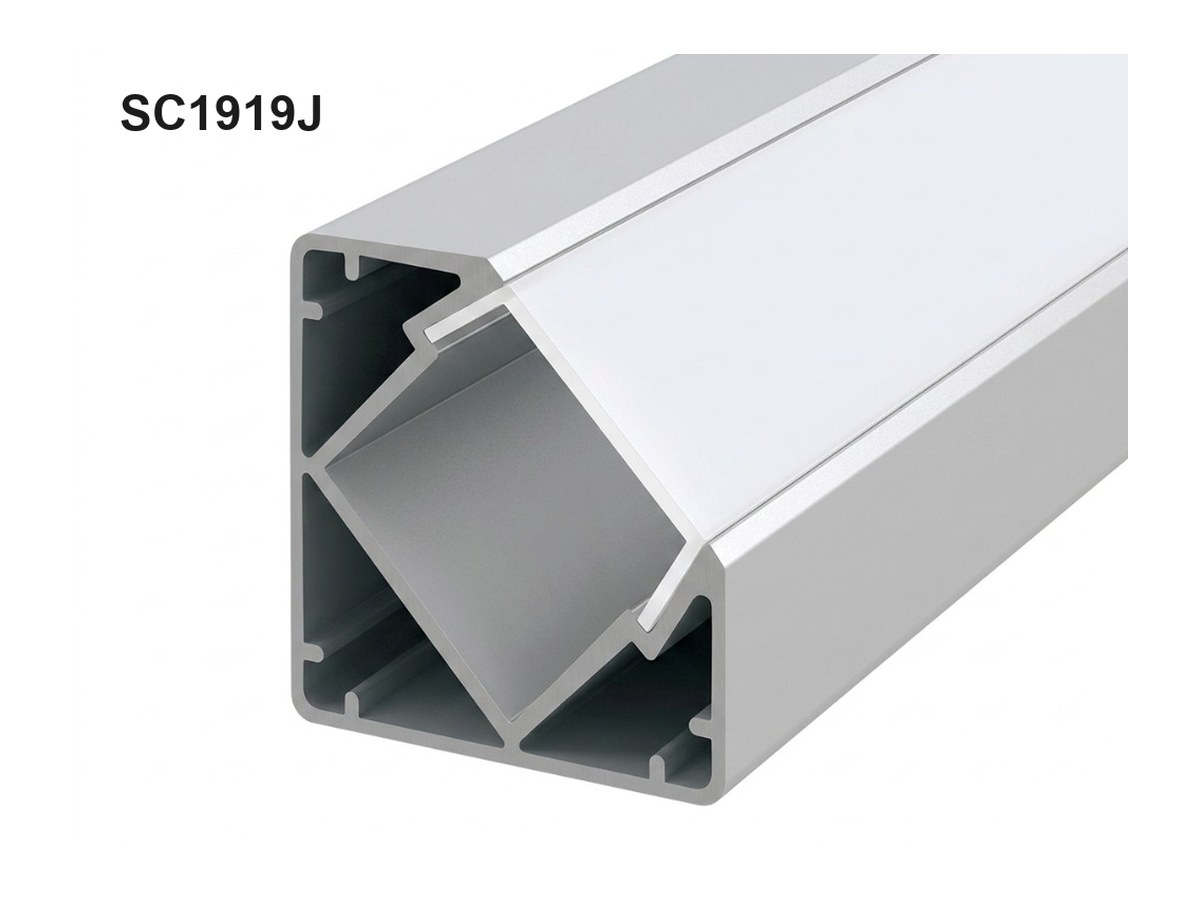

The two legs, center platform and diffuser opening all matter. A 19 × 19 mm SC1919D is not automatically a substitute for the differently shaped SC1919J. Even the visual V can be curved by a cover or modified by an asymmetric body. Check the full section against your host, then assess strip width, fixing access and the cover’s release path. The term V shape describes the geometry family; it does not establish a particular angle of tested light output, protection rating or electrical specification.
SC section choices
Four visibly different body proportions
For repeated fixtures, VST is a v shape LED channel wholesale supplier when one section, cover and finish have been approved. These cards show four published SC bodies.

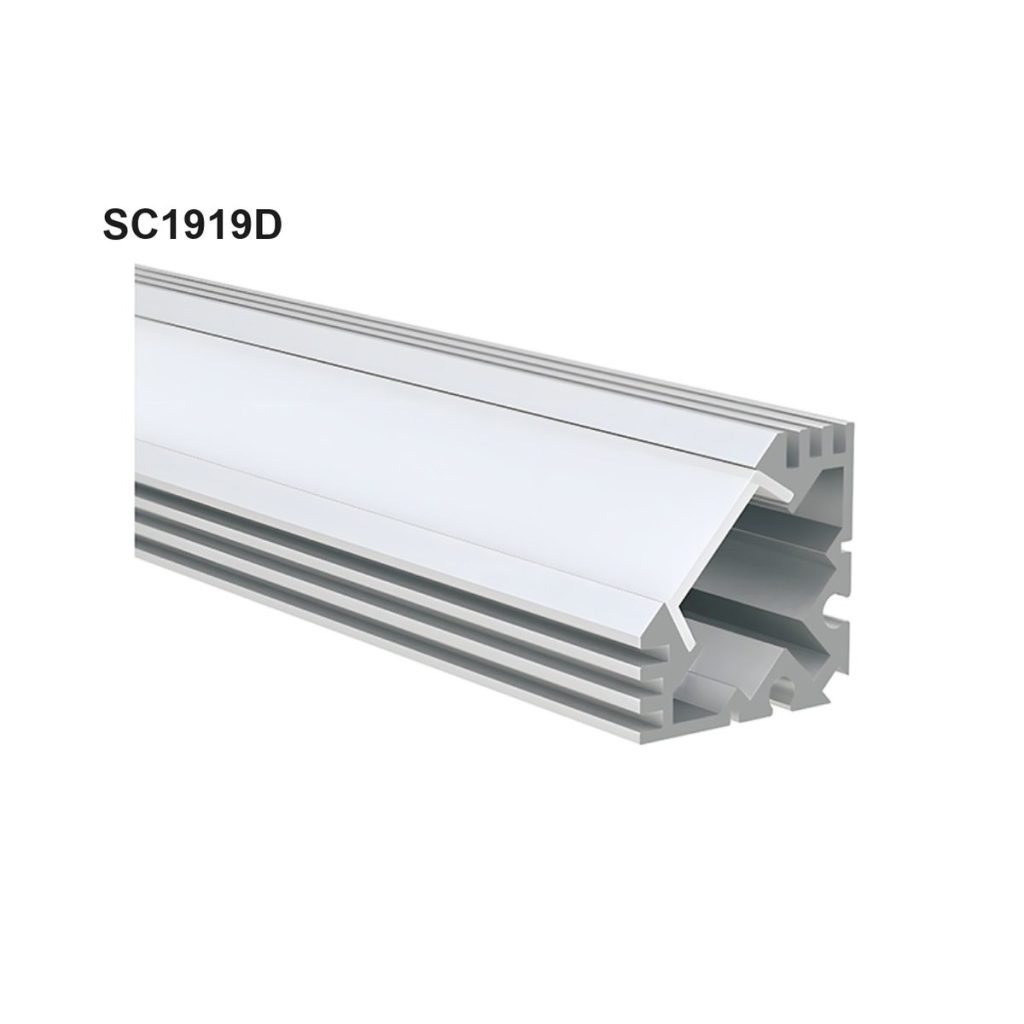

SC1919D · square outer section
A 19 × 19 mm housing with a more defined interior opening and published strip space up to 11 mm.
View Product

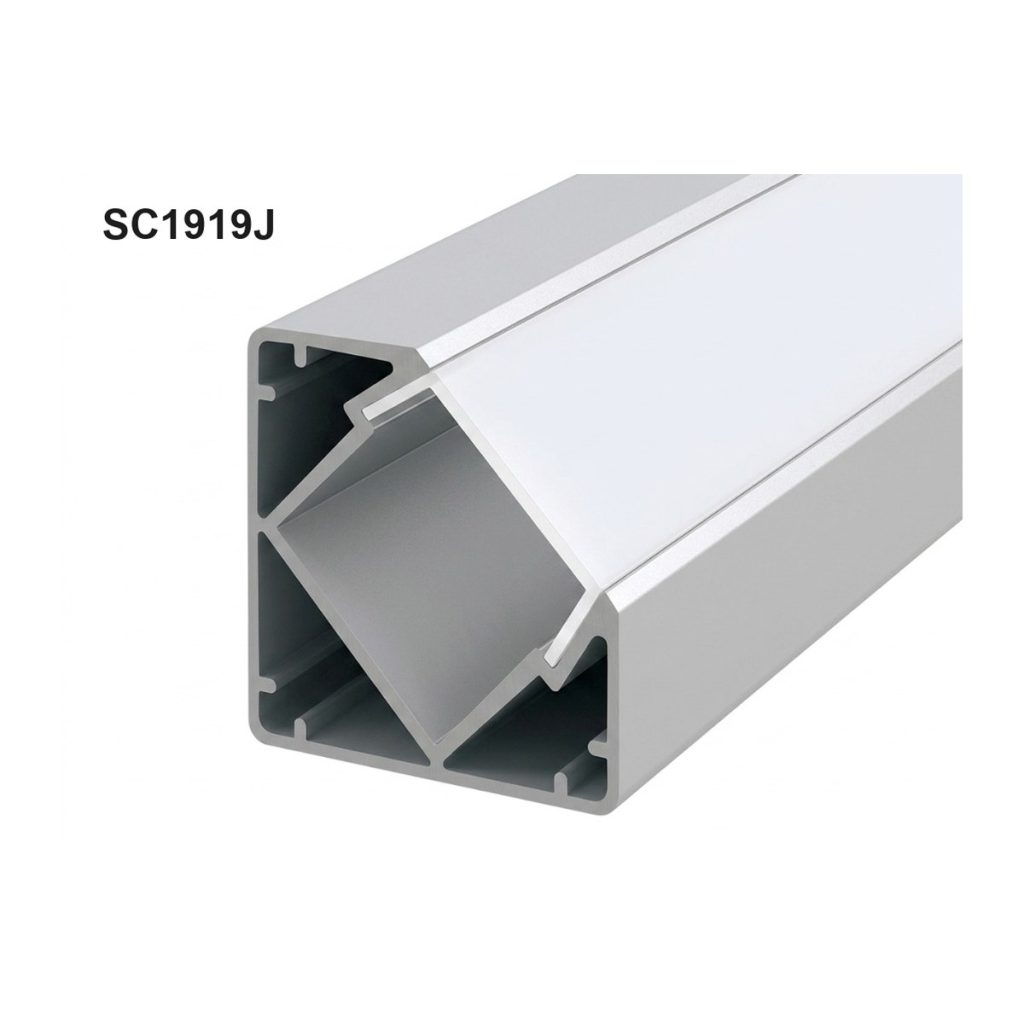

SC1919J · broad visible cover

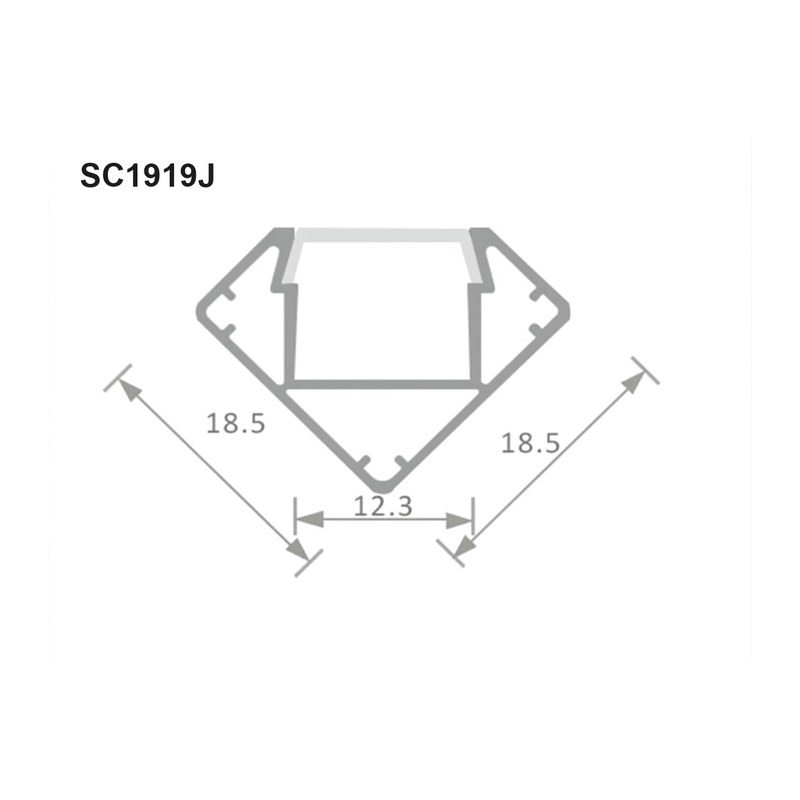

SC1919J has a 12 mm published tape limit; compare its cover opening and mounting against SC1919D.
View Product

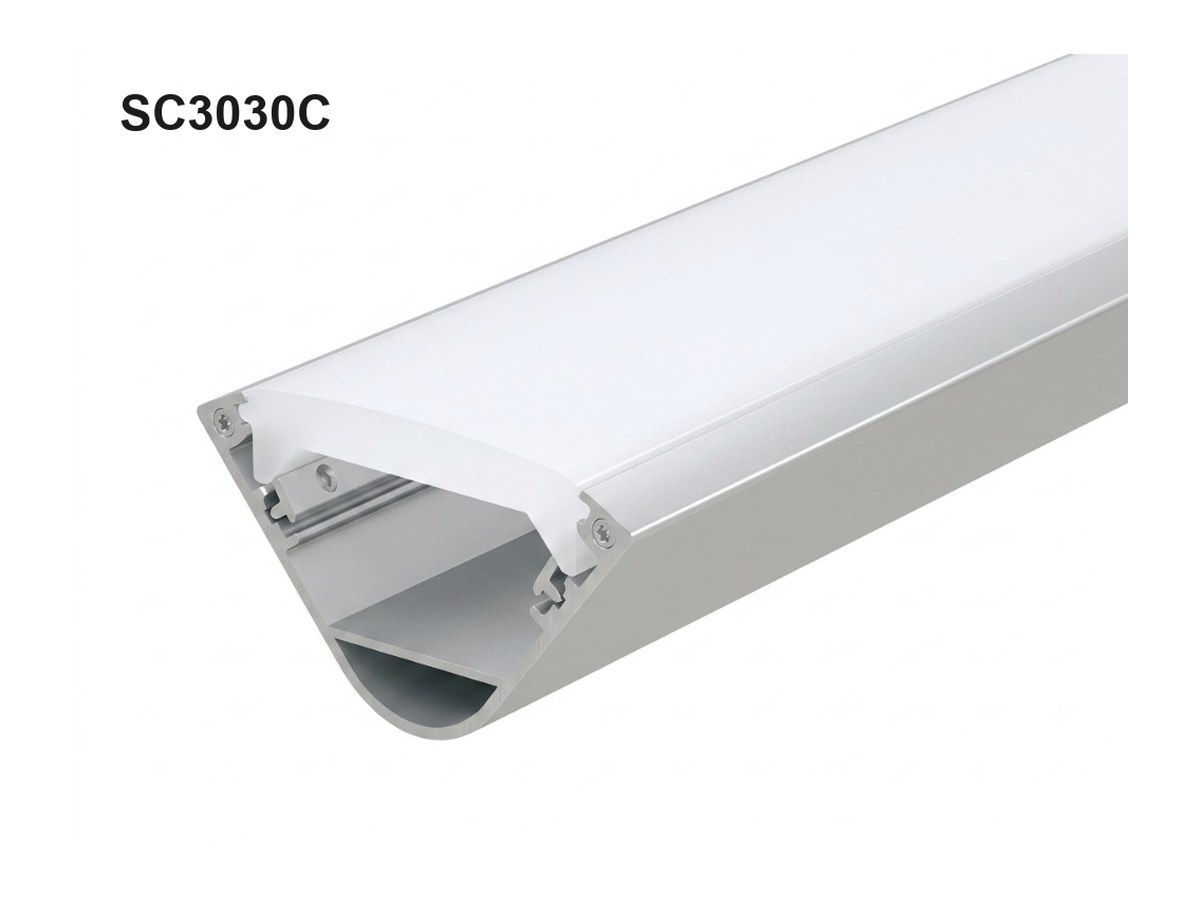

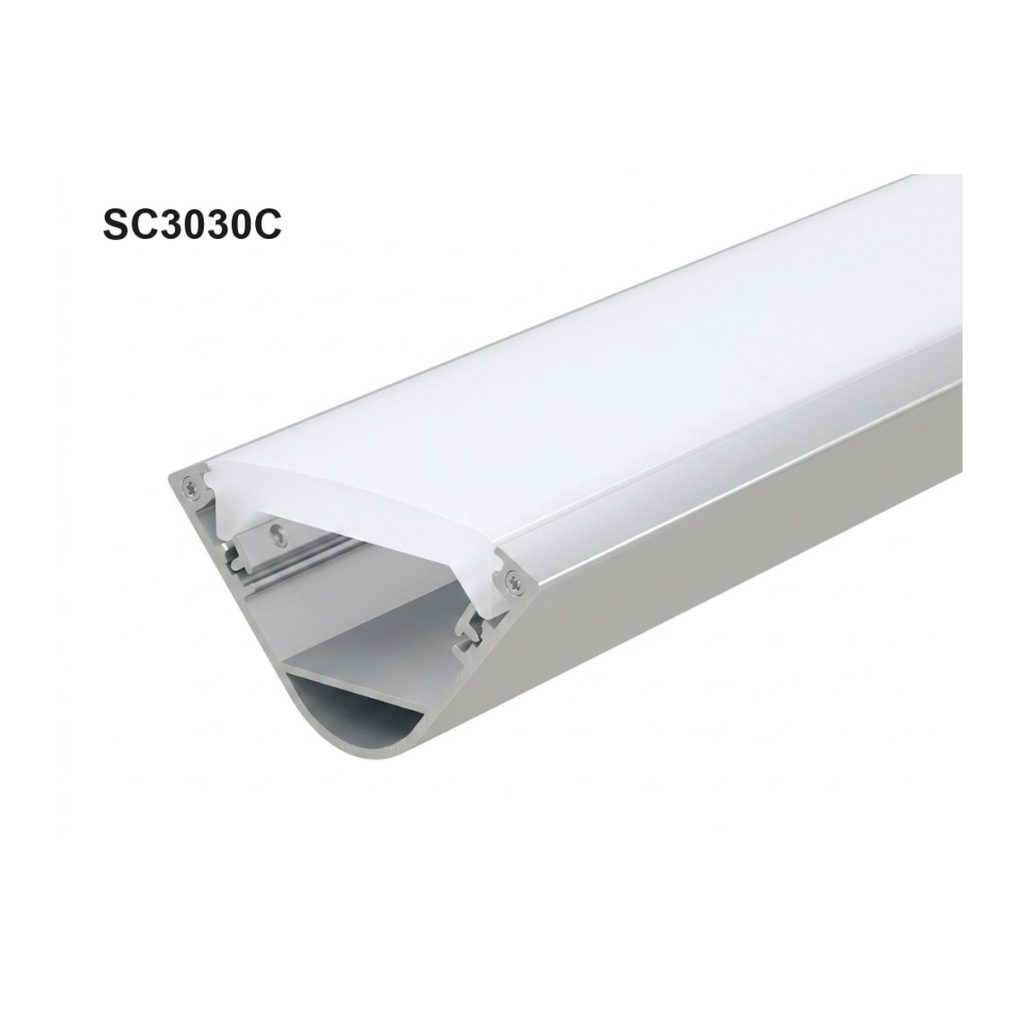

SC3030C · large rounded V

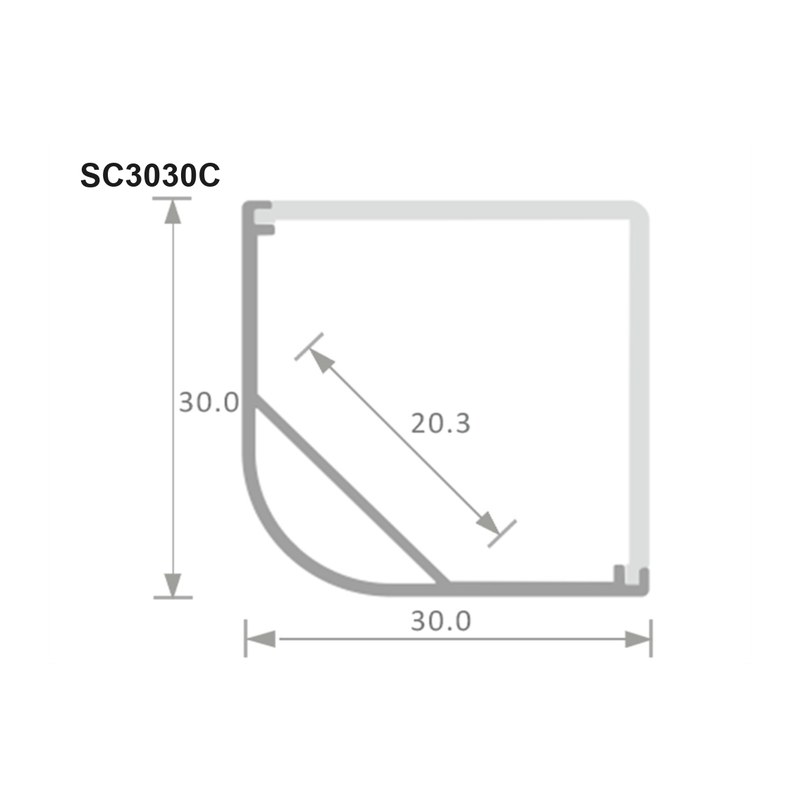

A 30 × 30 mm body for a broader light line and published strip space up to 20 mm.
View Product Mechanical checkpoints
Make the triangular detail buildable
As a v shape LED channel manufacturer, VST can provide the internal and external section dimensions needed for your host opening.

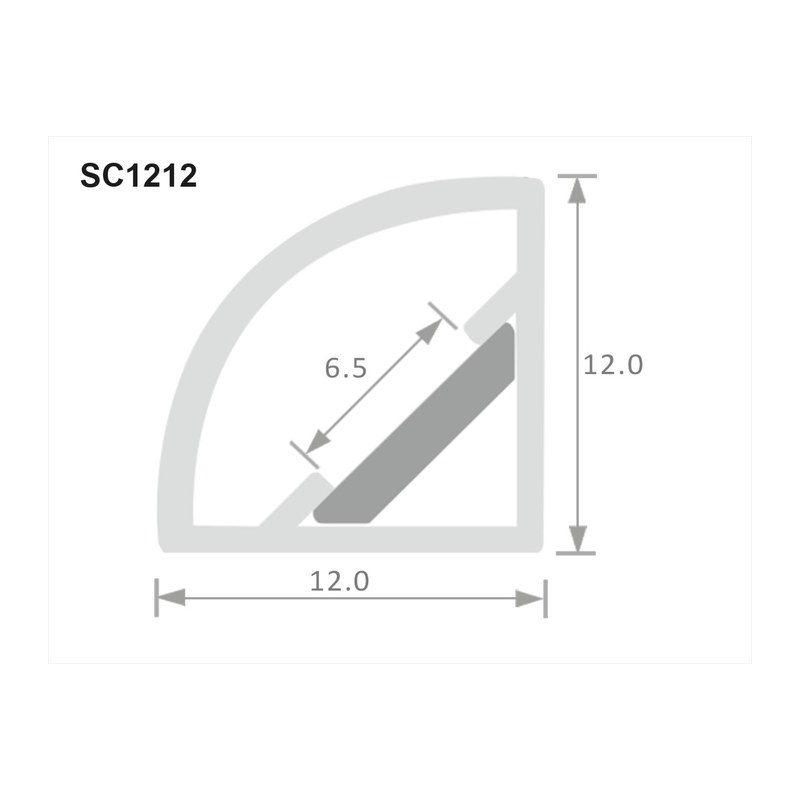

Full section drawing
The complete profile outline reveals interference with cabinet walls, trim and adjacent fixtures that a front-view product image can hide.
Usable internal width
The tape platform must fit the selected LED strip and its soldered or plugged end without forcing the cover.
Cover retention
The diffuser should seat on its intended lips and remain serviceable after the surrounding structure is complete.
Defined end treatment
Cut lengths and end caps affect the visible joint and the available exit for low-voltage wiring.
Construction details
The body behind the visible V
A drawing or close sample should show these three interfaces separately.
Primary body
Aluminum section
The body gives the v shape LED channel its outer legs, LED strip platform and thermal contact surface. It must sit against the actual two-plane host without twisting or leaving an unsupported edge. Differences among SC profiles are structural even when the nominal label sounds similar. Compare full cross-sections and hold a cut piece in the cabinet or building detail before machining a groove for an entire run.
Front opening
Diffuser
The cover is the visible part after installation. Its curvature and opacity influence the perceived line and the clearance needed at a nearby shelf or glass panel. Check how it enters the retaining lips and whether it can be removed with the host fully assembled. A v shape LED channel factory sample should include the exact cover finish rather than a loose aluminum body only.
Hidden attachment
Mounting rail
The fixation geometry lies behind the light line but determines whether the profile can be installed without damage. Depending on the SC section, a clip or screw may need access from a side that later disappears behind joinery. Plan the tool path, substrate and spacing. VST can compare the selected section with the host drawing and discuss a fastening trial before production lengths and end caps are approved.
Working context
Company film and customer voice
These videos give background on VST. The section drawing and sample are what decide whether a V shape fits your host.
VST manufacturing context
The company film introduces VST’s lighting work and component supply. For a triangular profile, compare the specific SC section, cover and accessories on its product page.
Customer cooperation perspective
The customer video offers a view of cooperation with VST. For your assembly, check the selected model drawing and sample dimensions.
Host details
Where the V section meets another material
A v shape LED channel must meet each host joint precisely. Each application asks a different mechanical question before the light is powered.
Wardrobe top junctions

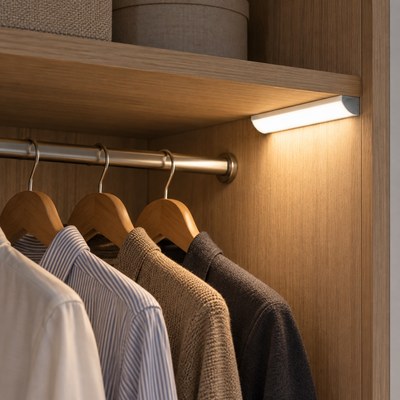

A V-shaped profile can sit in the upper inside joint of a wardrobe, leaving the floor of the compartment clear. Check door swing, rail clearance and how the cover will come out for service. VST can compare a compact SC drawing with the actual joinery angle and send a fitting sample.
Display fixture corners

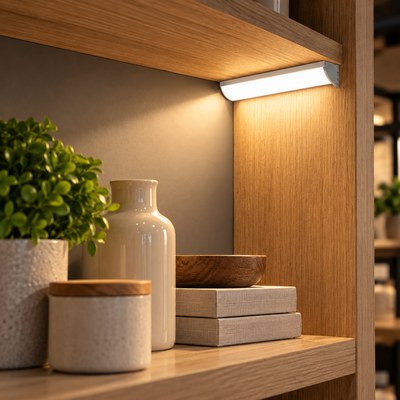

A retail shelf fixture may repeat one triangular detail across many modules. Confirm panel thickness, the position of hidden fasteners and how the cut ends align at each shelf. VST can help specify the profile code, cover and cut list against the fixture drawing before a larger rollout.
Glass cabinet joints

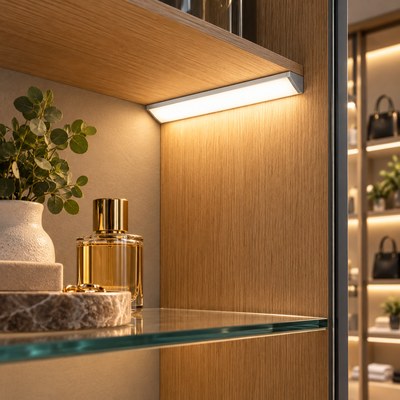

Inside a glass case, the metal V remains visible from several directions. Measure the available joint, check the desired finish and leave space to remove the diffuser without disturbing glass. VST can supply a section sample that allows you to judge the assembled joint and reflection.
Ceiling return details

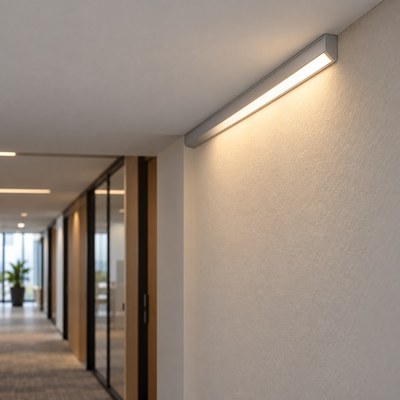

A ceiling-to-wall return may accept a larger triangular body than furniture, but the surrounding finish must remain straight. Check the actual angle, wall tolerance and route for fixation before choosing a model. VST can examine the building section and compare equal-sided with asymmetric SC options.
Cabinet soffit junctions

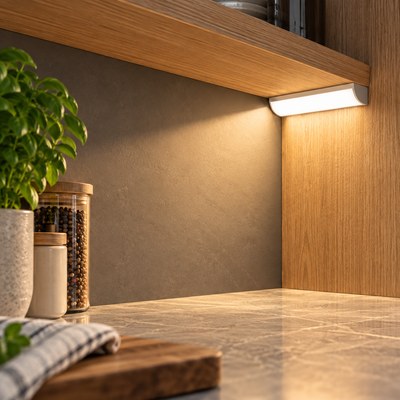

The narrow angle beneath a cabinet soffit may leave very little room for a cable and cover. Confirm the host opening, connector size and whether the final diffuser line should be exposed. VST can discuss a small V-shaped section and a sample cut that proves the access sequence.
Show the host section
Choose a V profile from the real joint dimensions
Send the host cross-section, strip width and visible cover preference. VST can match an SC model and identify interference. For a repeated fixture, VST is a v shape LED channel OEM supplier using the approved section.
Section data
Published dimensions for the shared SC family
The Datasheet covers all six online SC models because the visible V forms belong to the same published corner range. The V shape LED channel drawing should show the cover release path.

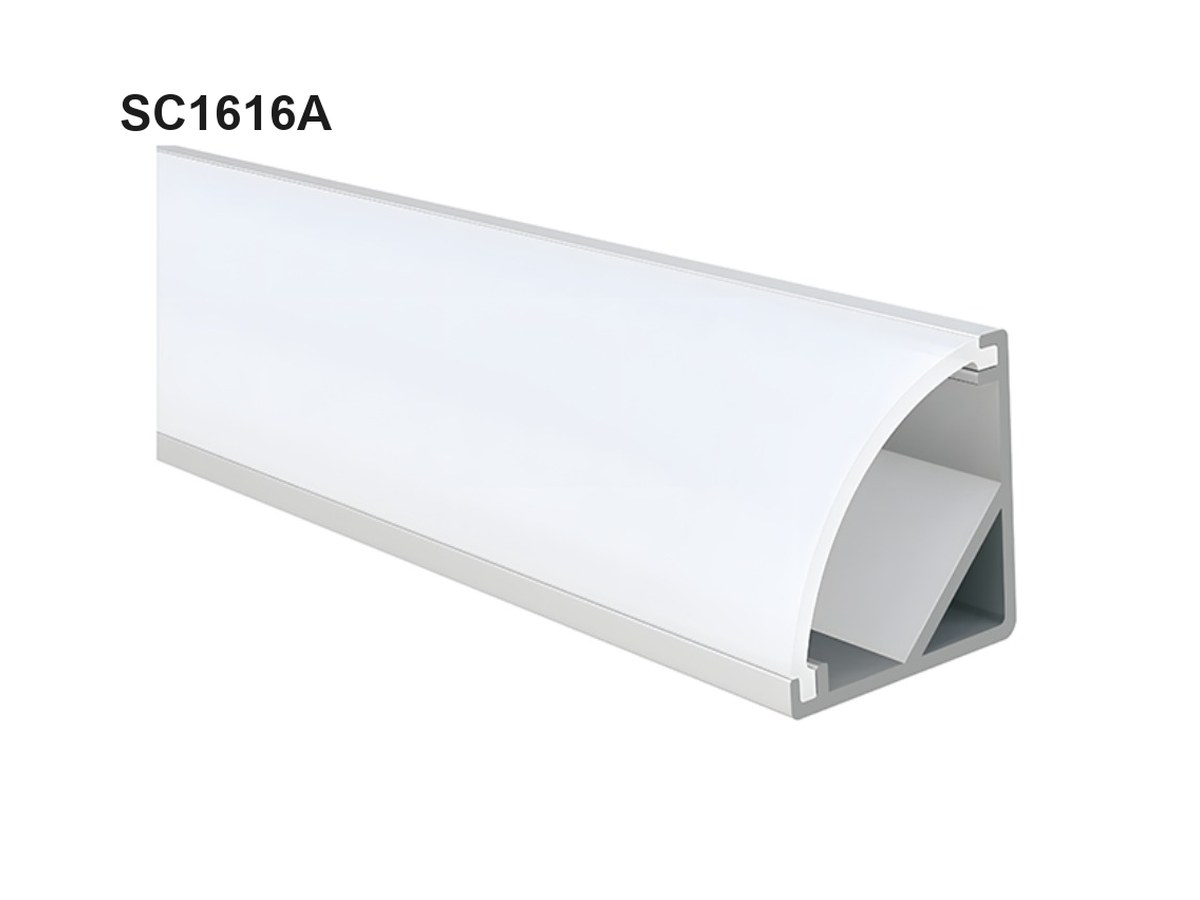

| Model | Published section and strip space |
|---|---|
| SC1212 | W 12 × H 12mm; Up to 6mm strip |
| SC1616A | W 16 × H 16mm; Up to 10mm strip |
| SC1919D | W 19 × H 19mm; Up to 11mm strip |
| SC1919J | W 19 × H 19mm; Up to 12mm strip |
| SC2016 | W 20 × H 16mm; Up to 12mm strip |
| SC3030C | W 30*H 30mm; Up to 20mm strip |
VST can discuss cut length, finish, diffuser, end-cap style and host-specific cable exits after the SC section is chosen. A new cross-section would be a separate development decision and may involve tooling.
The chosen aluminum extrusion is finished and cut to the agreed lengths, then paired with its cover and end details. VST can discuss inspection of the visible surface and the way the cover seats.
Trial the section in the unfinished host before drilling or routing the full run. Check both mounting faces, the fixing-tool path and the cable exit. Secure the channel, fit a compatible LED strip, close the diffuser and verify that adjacent panels still allow cover removal.
Assembly feedback
Comments on fit and repeatability
A small difference in section geometry can matter across an entire furniture or fixture program.
Order planning
Questions about supplying the selected section
The commercial offer should name the SC model, finish, cover and accessories.
Yes, a sample can be arranged for a defined SC model and diffuser. The useful trial is inside the real host, where you can check the fixing path and service clearance.
Aluminum profiles generally start around 300 meters as a planning guide, but the model, finish, cuts and accessories determine the actual minimum. A familiar stock section and a new custom V shape can have different economics.
VST supports finish choices, private labeling and custom packaging when the configuration and order size allow. A new section or special finish may require tooling or additional setup. Include the visible color and packing unit in the request so they can be assessed with the physical sample.
Regular products commonly need about 2–3 weeks of production. Light changes usually take around 3–4 weeks, and extensive customization around 4–6 weeks. Those are typical ranges before shipping, subject to material, quantity and approval of any new tooling or finish.
Samples are paid in advance by PayPal, Western Union or bank transfer. For bulk profiles, bank transfer normally requires a 30% deposit, then 70% before shipment. VST can state any sample, packaging or tooling charges in the offer for the selected configuration.
Section questions
Resolve the fit behind the V
The label “V shape” hides several important differences among published SC bodies. These answers focus on the section, cover, fasteners and clearance needed to make the detail buildable.
No. Their nominal outside dimensions are both 19 × 19 mm, but the cross-sections, diffuser openings and published tape spaces differ. SC1919D is listed for strip widths up to 11 mm, while SC1919J is listed up to 12 mm.
Use the host opening as the first filter.
These are starting points only. The section drawing and sample decide whether the fixing and cover actually fit.
| Host condition | Section to compare |
|---|---|
| Compact cabinet joint | SC1212 |
| Wider fixture corner | SC1919J |
| Broad architectural return | SC3030C |
Only if there is enough physical clearance for the actual connector, cable bend and diffuser. Published compatible strip width describes bare tape space, not every connector assembly. Place a sample connector at the intended end and make sure it neither lifts the cover nor pushes the tape off its mounting platform.
The answer depends on its retention lips and the objects around the profile. A cover can be easy to fit on a bench and impossible to remove after a cabinet side or ceiling return is closed. Leave a service path in the host drawing and verify it with a short section before fixing production dimensions.
No. The aluminum section needs a compatible LED strip, electrical supply, appropriate cover, wiring and mounting details for a finished installation. The final construction determines the relevant safety and environmental scope. State whether you need the bare channel or a coordinated lighting assembly so the offer matches the parts you expect.
