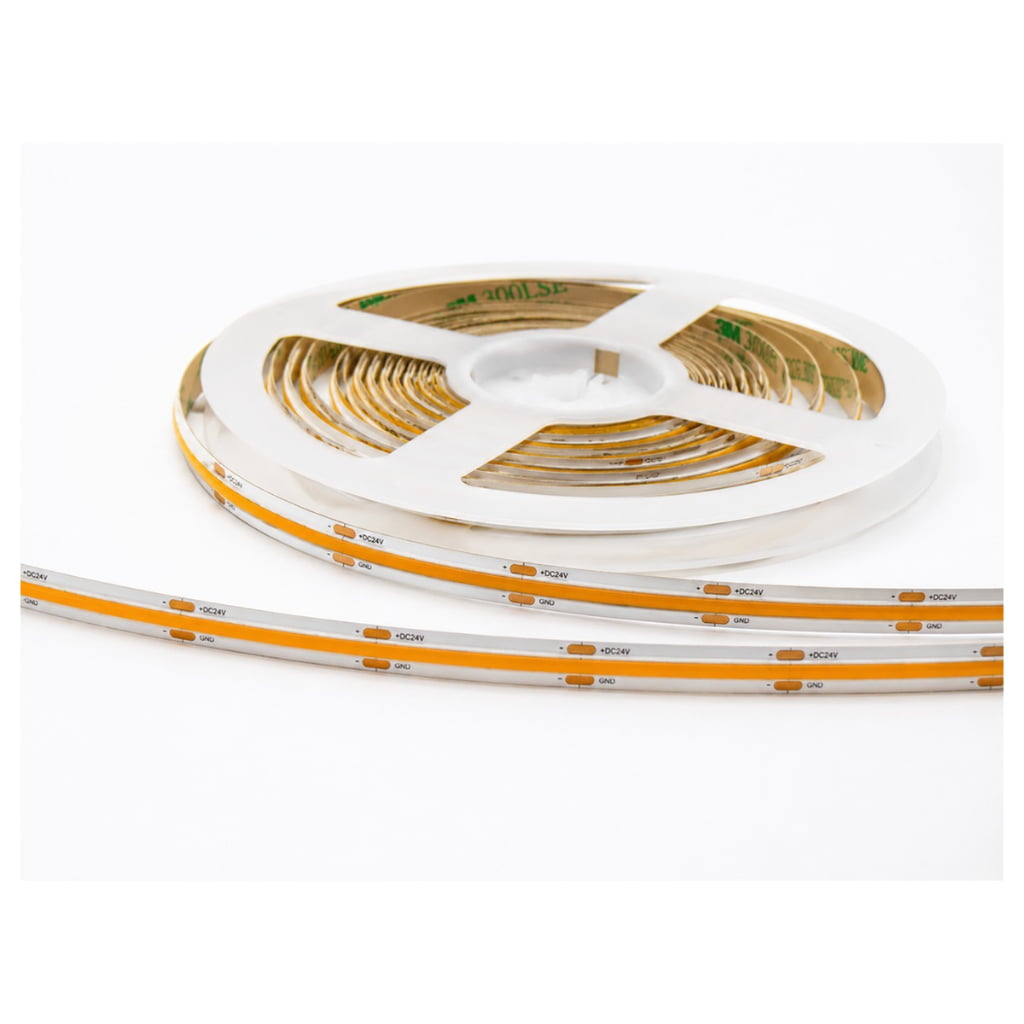

White COB tape
A continuous line of light for a concealed perimeter or shorter side section. Test it at the low output needed beside the bed.
Request This Configuration Integrated bedroom lighting
Fit a bed LED strip to the frame
A bed LED strip can cast a gentle glow onto the floor while staying hidden beneath a fixed frame.
- Test brightness in a dark room.
- Keep the light clear of bedding and moving mechanisms.
- Ask about prepared leads for the bed assembly.
- Check the lowest usable dimming level with your chosen controls.
Nighttime orientation
Place the light where you can shield it from view
Bed LED strip lights work best when the source is shielded from the pillow and seated view. The floor should receive the light without a directly visible row of emitters.
A recessed plinth can hide the tape; an open frame may need a channel or shield. Test the floor too: dark carpet and polished timber reflect the same light differently. VST can discuss low-voltage tape and prepared connections for your bed construction. Fix the lighting to a stable surface and keep its accessible power route out of the walkway. A bed LED strip provides an accent or orientation light. It cannot replace a reading lamp or required emergency lighting.
Sightline from the pillow
Inspect the light from lying and seated positions. A hidden source at standing height can become visible when the bed is occupied.
Floor response
Test the intended floor material at night. A small reflective patch on timber can be more distracting than a wider glow on carpet.
Clearance for moving parts
Check the full travel of drawers, lift mechanisms and folding frames. Keep tape and leads clear of places that could pinch or rub them.
Furniture integration
Make the lighting a serviceable part of the bed
VST is a bed LED strip manufacturer that can help plan the light assembly for your fixed mounting surfaces and furniture assembly process.
Prepared harness layout
Specify the wire exit and connection point so the lighting can be fitted without loose cables near feet, casters or floor-cleaning equipment.
Test the light at night
Use the selected controller to test a sample in a dark room. Low-level dimming problems can be easy to miss during daytime assembly.
Resolve fitting details early
Electrical and structural checks help establish whether the bed needs a channel, cable opening or service panel before the frame design is finalized.
Packing by furniture version
Labels and protective packing can separate lighting sets by bed width or frame version so the assembly team does not mix components.
Lighting boundary
What a bed LED strip is designed to illuminate
A strip beneath the mattress platform usually directs a small amount of light toward the floor or a nearby surface. It is intended as an accent, not full-room lighting.
Choose warm white, tunable white or decorative color with suitable controls and power. Low-voltage tape still needs correct installation and protection from physical damage. Specify motion detection and its sensor separately; a reel does not automatically include them. For LED strip lights for bed frames, the furniture determines mounting space, thermal clearance and service access. Claims about improved sleep or fall prevention require separate evidence.
Tape options
Choose the tape for the light you want at night
Compare these tape options with VST, your bed LED strip supplier, as you work out where to mount the light and how to control it.

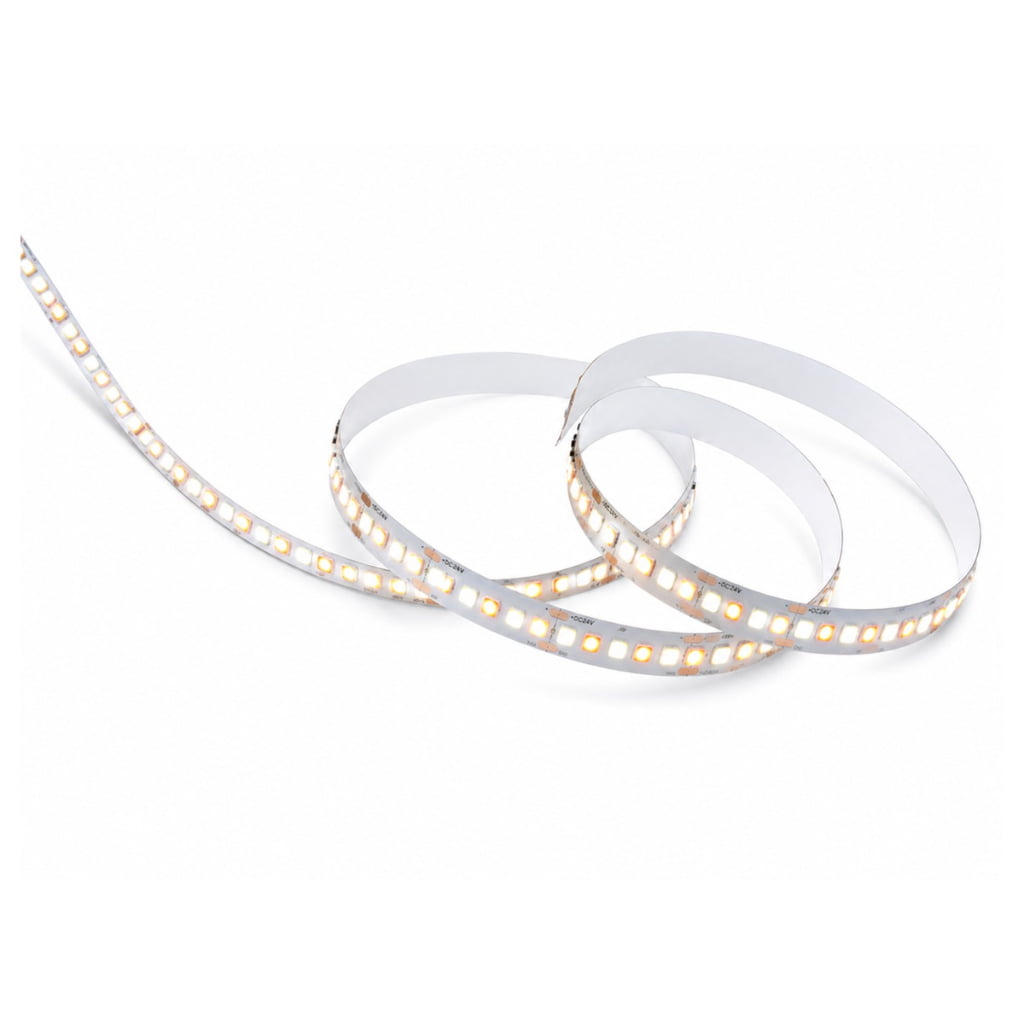

Compact white SMD tape
Narrow tape for a small frame detail. Check the LED spacing with the diffuser and floor finish you will use.
Request This Configuration

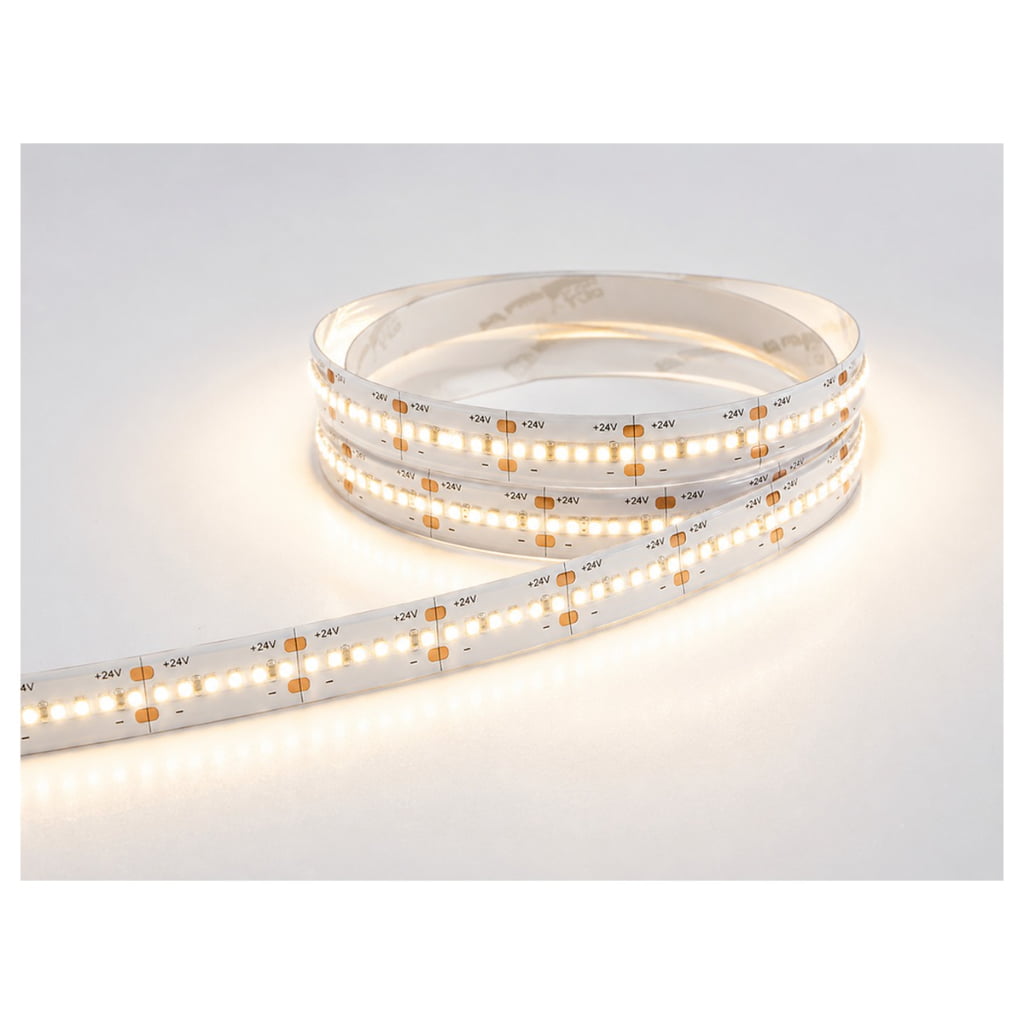

Adjustable-white SMD tape
A suitable controller adjusts the warm and cool channels to vary white tone. Match the tape to the chosen power supply.
Request This Configuration Assembly priorities
Make the lighting easy to fit and service
As your bed LED strip OEM supplier, VST can prepare and identify the light sections to match the agreed furniture assembly.
Protected cable routes
Route prepared leads along fixed frame members to an accessible connection. This reduces exposed cable loops around the bed base.
Compact mounting space
Check PCB width when choosing the tape, then allow space for the channel and cable exit within the bed frame.
Dimming evaluation
Test the lowest stable output with the selected controller. A dimming function alone does not tell you whether the light will be comfortable at night.
Furniture-set labeling
Labels can identify the bed-frame version each lighting section belongs to, giving assembly staff and later replacements a clear reference.
Component choices
Lighting components inside the bed frame
Source selection and cable preparation should follow the fixed bed-frame structure.

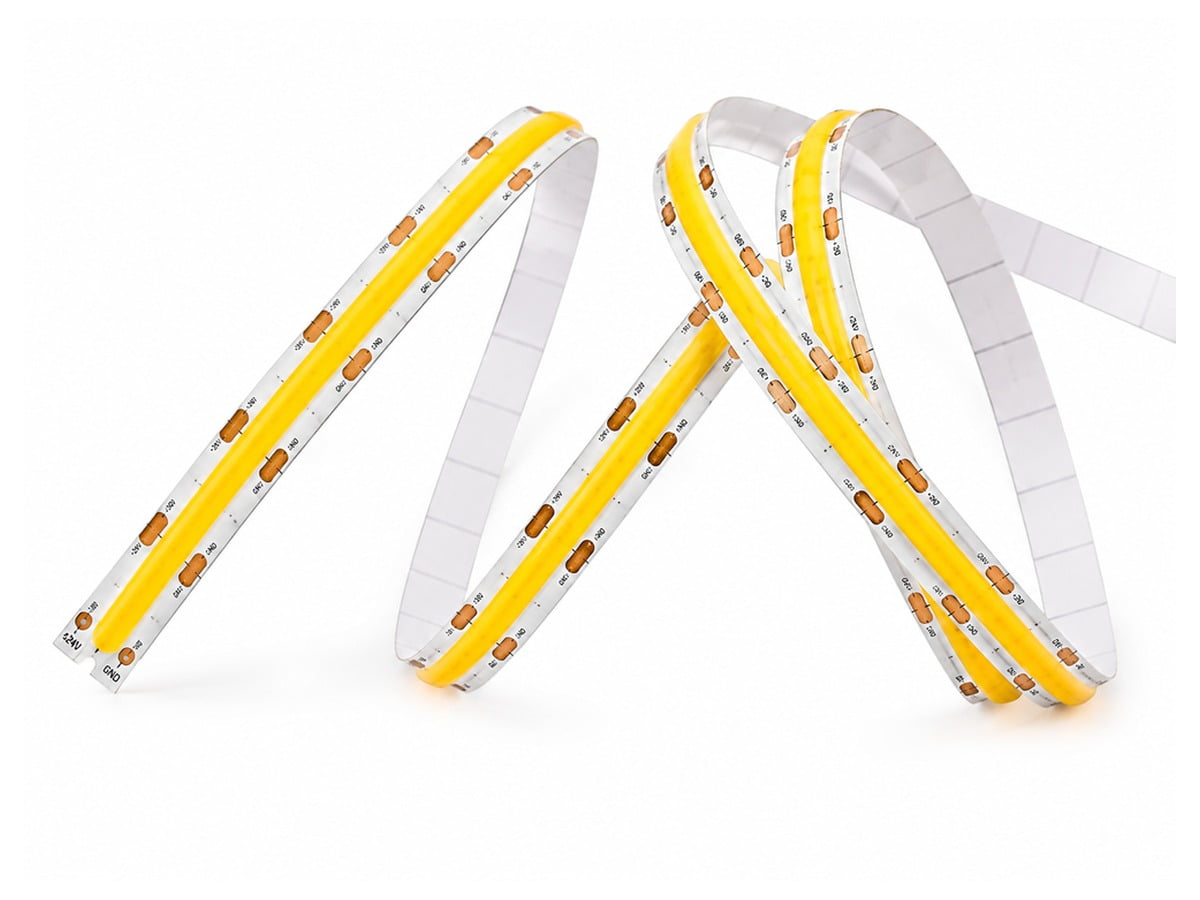

Emitting element
COB light source
COB tape gives a continuous line of light behind a shallow shield. Even a smooth-looking source can be too bright at full output in a dark room. Test a short section at the intended dimming level and check its reflection on the actual floor. Use the model's output and color data to choose the tape, then assess how the frame directs that light into the room.

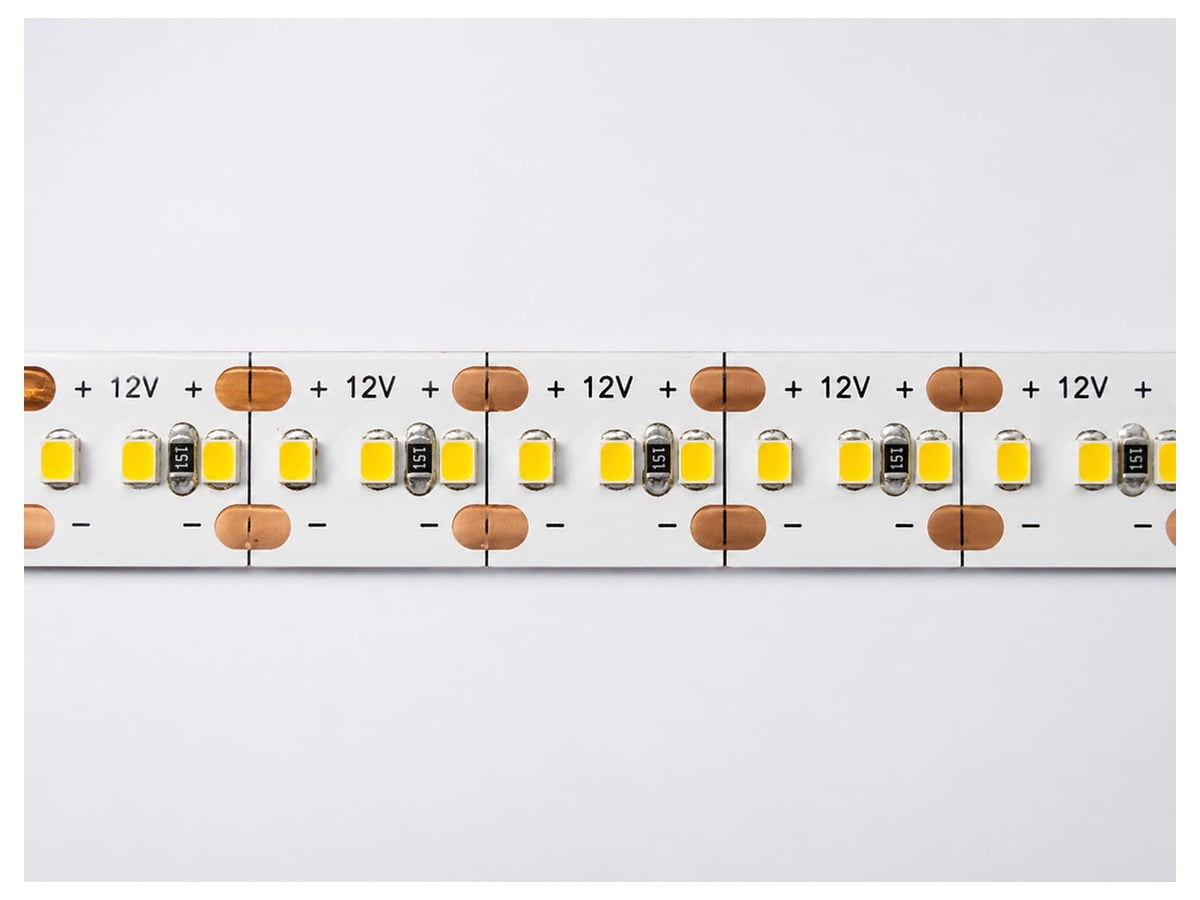

Flexible circuit
PCB mounting surface
Support the circuit board on a stable part of the bed. Moving rails, drawers and folding members must not press against it. The tape can follow a suitable gradual bend but should not bridge a moving joint. Use separate sections with insulated leads at corners, keeping the designated cutting points and enough space for connections inside the assembled frame.

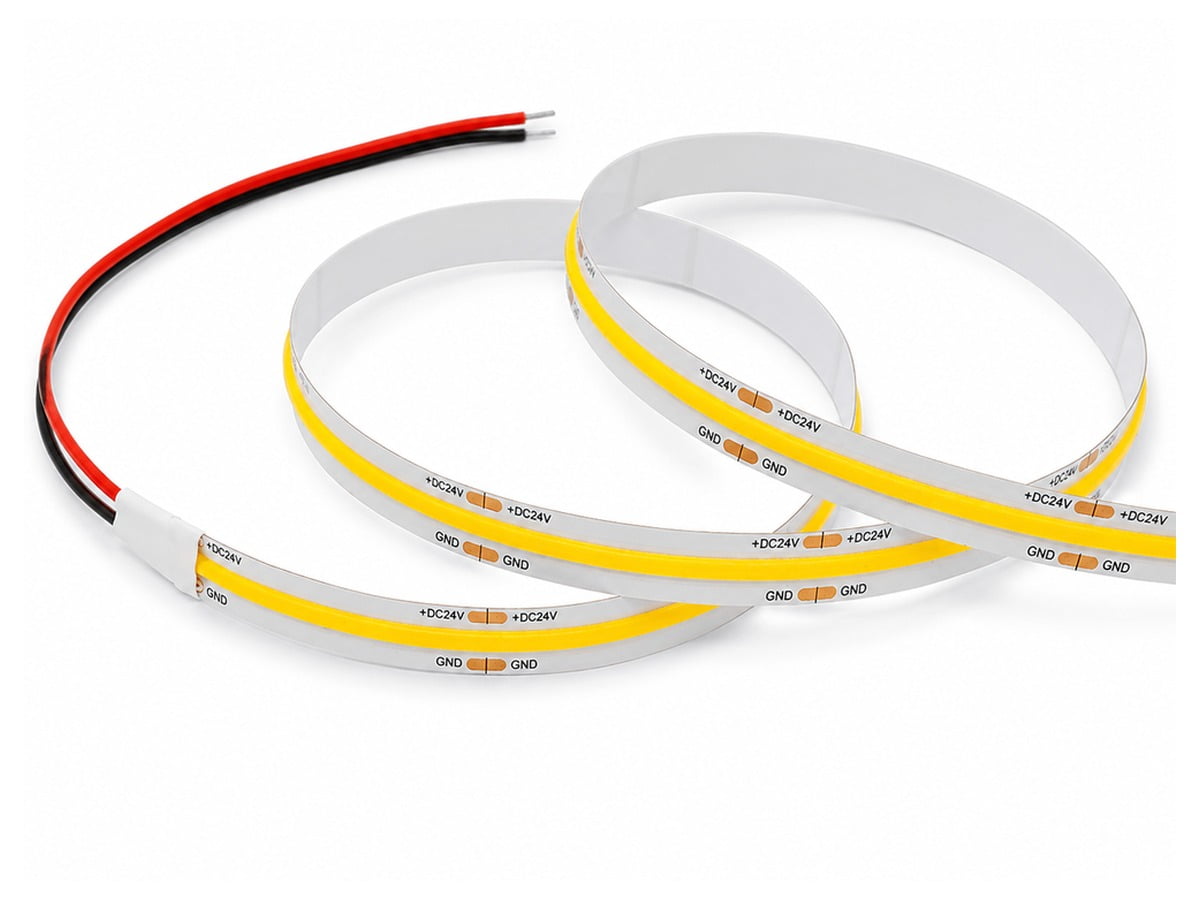

Electrical connection
Power lead
The lead connects the tape to its low-voltage supply or control. Run it along fixed frame members with strain relief, away from sharp edges and cleaning access. Keep the connector accessible so replacing the lighting does not mean dismantling the whole bed. Check cable length against the electrical load before adding an extension behind the headboard.
VST videos
LED strip options for furniture projects
See the source options and hear a customer describe working with VST.
LED sources for furniture integration
The strip overview introduces light-source construction. For your bed design, test a sample in the frame with the proposed controls to check nighttime output and mechanical clearance together.
Feedback on working with VST
Hear feedback on the working relationship. Agree the assembly scope, communication and sample decisions for your own order, especially when the lighting must fit several bed-frame versions.
Application planning
Fit the lighting to the bed construction
Furniture movement and nighttime use determine the useful lighting layout.

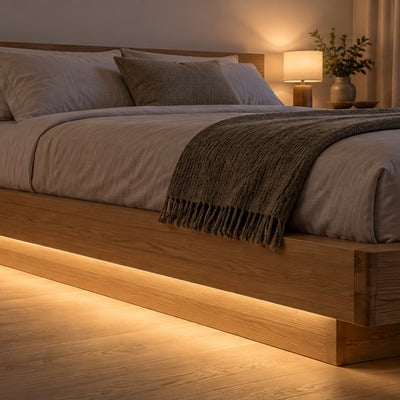

Platform bed perimeter
A recessed platform-bed base can hide a light line directed toward the floor. Check the plinth setback and floor reflection from the pillow before deciding how bright it should be. VST can supply samples and discuss prepared perimeter sections so the bed LED strip fits the fixed frame and planned wiring route.

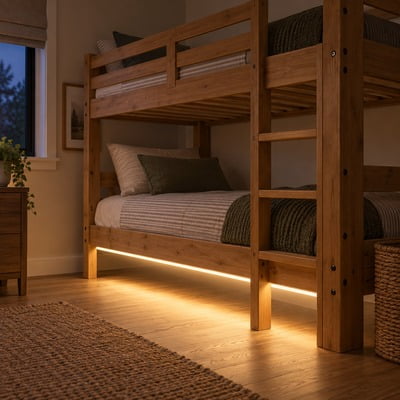

Bunk-bed lower access
A short downward light on the lower bunk can illuminate its access side without shining into the upper sleeping area. Identify a fixed mounting surface, check ladder clearance and choose an accessible control position. VST can discuss short tape sections and protected leads, with the complete assembly assessed for the furniture's intended use.

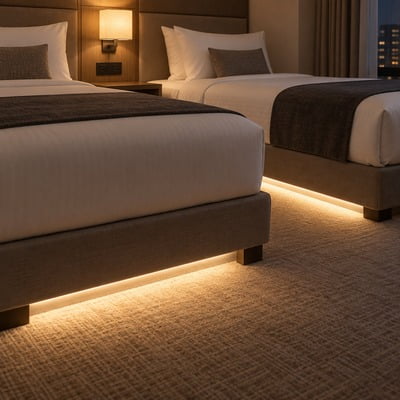

Twin-bed hospitality rooms
Twin beds may need separate low-level lights so one person can use an access path without lighting the room. Specify room controls and cleaning clearance, with an accessible replacement connection. VST can prepare lighting sets for the agreed bed versions and support sample comparisons on the room's actual carpet or floor finish.
Convertible guest furniture
On a sofa bed, mount the light to a stable part that stays clear as the furniture folds and unfolds. Check the full range of movement and keep cables out of scissor mechanisms. VST can use your frame drawing to discuss section lengths and lead positions before you test a working furniture prototype.

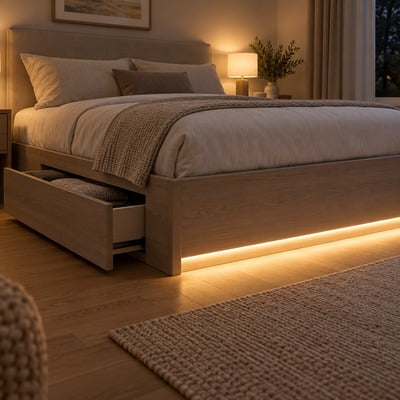

Beds with storage drawers
Storage-bed lighting can attach to the fixed frame while drawers open and close freely. Check drawer travel and rail positions, including where stored objects or cleaning tools might touch the light. VST can help choose tape sections and protected cable routes outside those areas, then prepare a sample for fit testing.
Begin with the construction
Show us where the light can be fixed
Send a frame photo or section drawing, the control functions you want and the quantity. VST can propose tape and lead arrangements for your furniture sample as your bed LED strip wholesale supplier.
Furniture source data
Specifications for concealed low-voltage lighting
The source and completed frame should be evaluated together.
| Model | DC V | W/m | PCB mm | Cut mm |
|---|---|---|---|---|
| C320W0808 | 12/24 | 8 | 8 | 50 |
| C608CCT1410 | 12/24 | 7+7 | 10 | 26.31 |
| S3014L120W1005 | 24 | 10 | 5 | 50 |
| C504W1012 | 48 | 10 | 12 | 83.33 |
| S2835L160W1404 | 12/24 | 14.4 | 4.5 | 25 |
| S2835L120W1208 | 12/24 | 12 | 8 | 50 |
| S2835L240W4012 | 24 | 40 | 12 | 33.33 |
| S2835L420W4040 | 24 | 40 | 40 | 50 |
| S2216L120W0605 | 12/24 | 6 | 5 | 50 |
| S2216L560W2012 | 24 | 20 | 12 | 25 |
| S2835L120CCT1208 | 24 | 6+6 | 8 | 100 |
Ask about prepared lengths and leads, light color and assembly labels. Sensors, dimmers and plug-in supplies are separate items unless the agreed configuration explicitly includes them.
VST checks incoming materials, assembly and outgoing products. Record the approved wire orientation and tape version for each bed design so production lighting sets match the corresponding furniture.
- Disconnect the supply before fitting the lighting.
- Use a stable mounting surface clear of fabric and moving hardware.
- Protect wires from sharp edges and provide strain relief.
- Keep the power supply ventilated and accessible.
- Check operation at night and cycle all moving bed parts before use.
Cooperation feedback
Furniture integration feedback
Feedback on fitting lighting into the furniture assembly.
Ordering with VST
Planning a furniture lighting order
Sample, production and replacement arrangements for a furniture lighting program.
Yes. Use a prototype set to check the tape and leads inside your frame. A credit for sample charges against later bulk production can be agreed separately. Free development and automatic refunds are not included by default.
For bed lighting tape, 500 meters is the general starting quantity, subject to the model and preparation work. VST can help translate that into sections for each frame as your bed LED strip supplier.
Yes. Specify the section labels and packaging for each bed version. VST supports private labels and custom packaging; extensive development or tooling is assessed separately and is not automatically included.
For a standard furniture lighting order, typical production is 2 to 3 weeks. Light customization generally needs about 3 to 4 weeks; extensive customization moves the typical range to 4 to 6 weeks. The schedule excludes transit and depends on the agreed preparation and quantity.
For samples, VST accepts full advance payment through bank transfer, PayPal or Western Union. Bulk-order payment is normally by bank transfer, with 30% deposited first and the remaining 70% settled before shipment.
Provide a concise issue description with photos or video. Replacement support for a VST quality issue may be arranged separately or with the next shipment. LED strip warranty options are generally two or three years; selected products may offer five years.
Product questions
Bed LED strip selection questions
Decide where you want the bed LED strip to cast light, how it will switch on and where you can reach its power connection. Those choices help define the first sample. They do not establish a health or safety benefit for the finished bed.
Yes. Show the frame concept and identify its fixed parts. Explain whether you want a decorative accent, nighttime orientation light or both. You can begin choosing the source now and settle the cable route and mounting detail in the prototype.
Choose the layout by the useful illuminated area.
Extra tape increases electrical load and can make the room brighter than intended.
| Layout | Typical reason |
|---|---|
| One side | A single access path |
| Two independent sides | Separate user operation |
| Perimeter | A continuous decorative outline |
No. Specify the sensor with the system, including its detection area, timeout and manual override. Test whether bedding, pets or movement elsewhere in the room trigger it unintentionally. The tape alone cannot establish sensor compatibility.
Do not put a power supply under bedding or anywhere that blocks ventilation or access. Choose an accessible position that follows the supply manufacturer's instructions and suits the furniture. Keep electrical equipment clear of fabric, even where you want it hidden.
No. The tape, supply and controller determine low-level stability together. Test the final components for visible steps, flicker or sudden shutoff. Check the lowest setting in bedroom conditions; a full-output daytime demonstration will not show whether it is comfortable at night.
